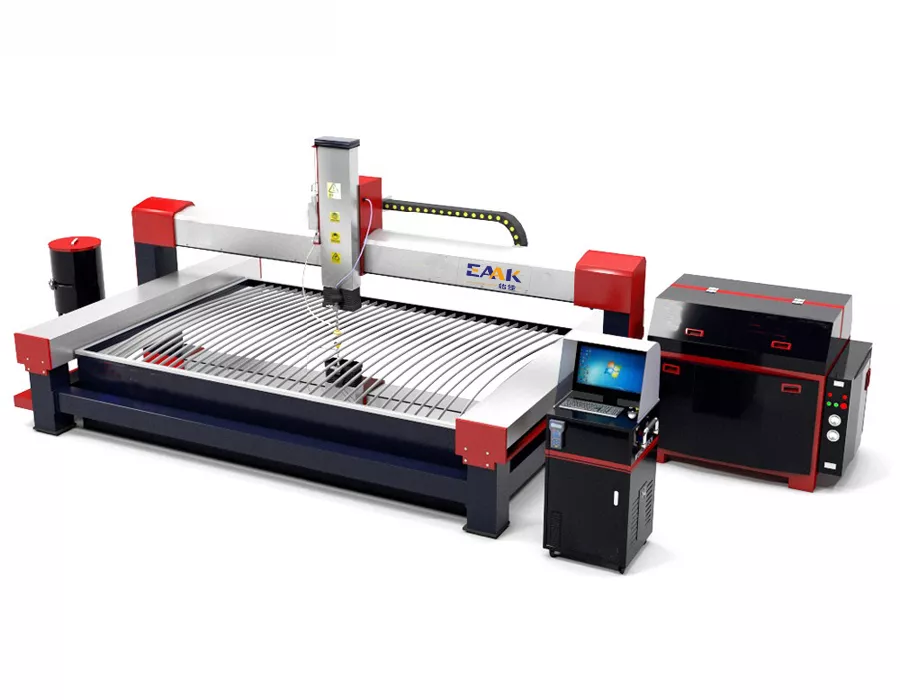

Станок для гидроабразивной резки, EK3020N

Технические характеристики

Model EK3020N

X Y axis Working size2000mm*3000mm

Z working height150mm

Cutting Pressure420Mpa 37kw UHP pump

Control accuracy0.01mm

Cutting accuracy0.1-0.2mm

Repositioning Accuracy0.05mm

Max cutting thickness300mm(depends on materials)

Max. moving speed6000mm/min

Power supply380V 50Hz

Environmental temperature-10-50°C

Max flow rate3.7L/min

Max oil discharge206L/min

Max delivery capacity of oil pump106L/min

Control systemNcstudio (Shanghai) software IPC controller

CAD/CAM softwareAutoCAD,ArtCAM

Drive motorJapan Yaskawa servo drive motor
