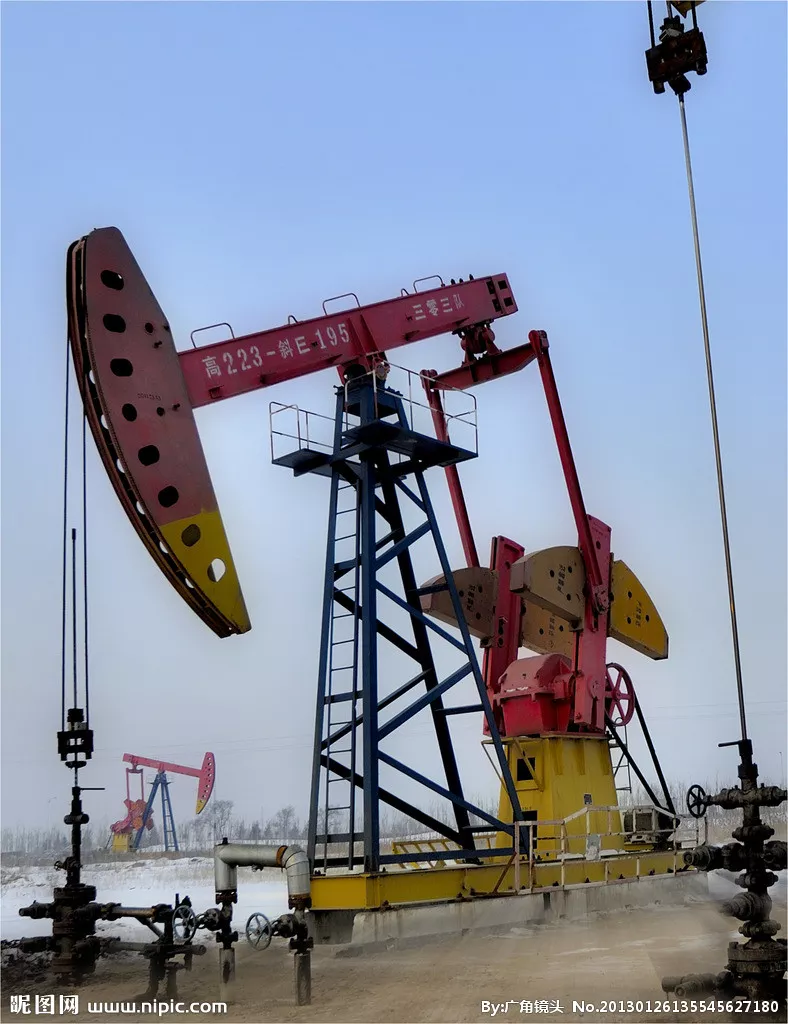

Cтанки-качалки, API

Технические характеристики

Type API spec 11E Rated suspension center load Reducer Torque Stroke Stroke Frequency Motor Power Machine Quality
CYJ3-0.75-2.8HY 25-64-30 30 2.8 0.75 9,14 3.2 4.5
CYJ3-1.2-2.8HY 25-64-48 30 2.8 1.2 6,9,12 4.0 5.2
CYJ3-1.5-4.5HY 40-64-60 30 4.5 1.5 9,14 4.5 5.5
CYJ5-1.8-13HY 114-107-72 50 13 1.8 6,9,12 11 7.0
CYJ10-3-37HY 320-213-120 100 37 3.0,2.5,2.1 6,9,12 30 18.0
CYJ12-4.8-73HF 640-256-192 120 73 4.8,4.2,3.6 5,7,9 45 29.0
CYJ14-4.8-73HF 640-305-192 140 73 4.8,4.2,3.6 5,7,9 55 31.7
